TS500P-3200

[wptabs style=”wpui-narrow” mode=”horizontal”]
[wptabtitle]TS500P-3200[/wptabtitle]
[wptabcontent]

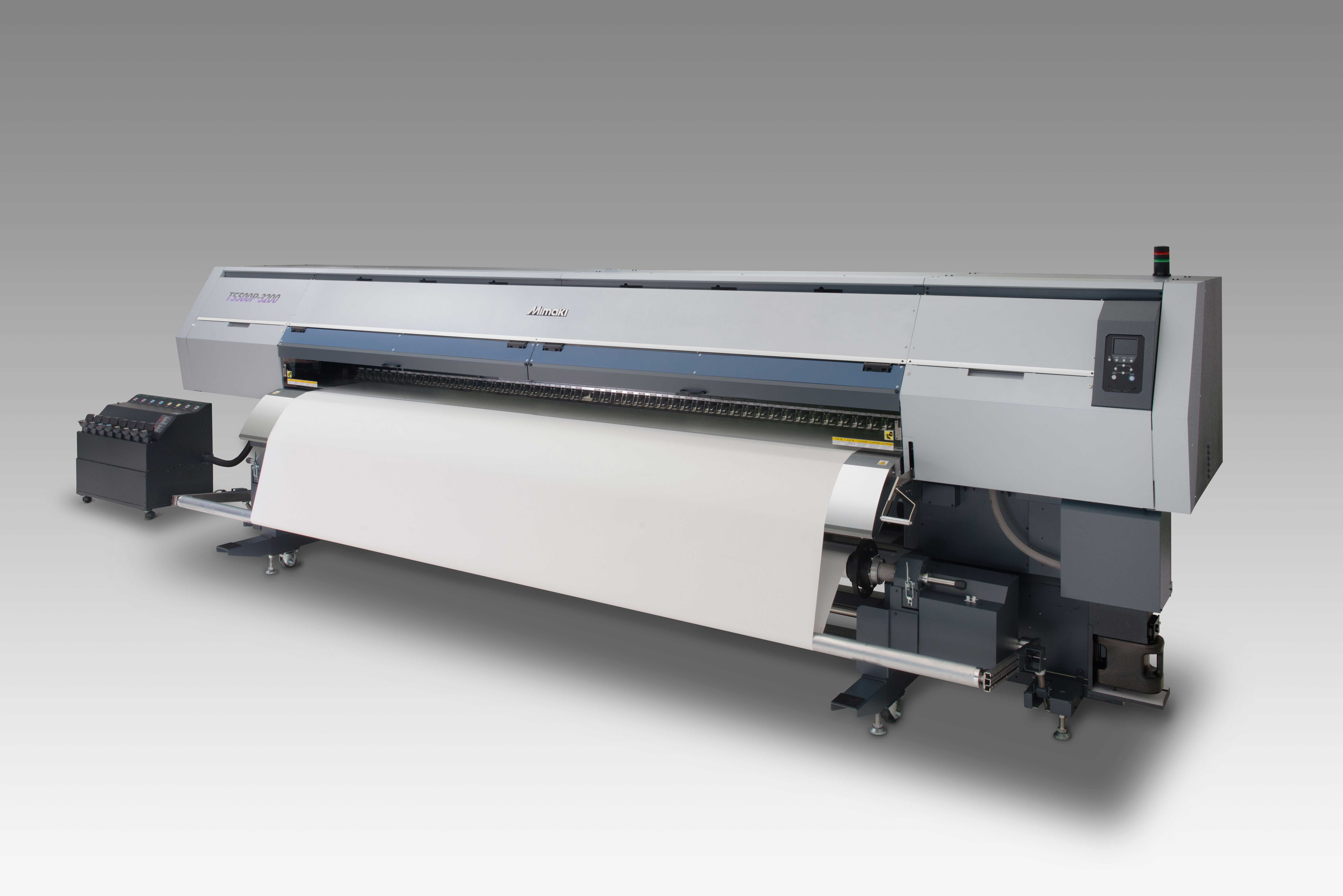

A high quality, super-wide sublimation transfer inkjet printer …

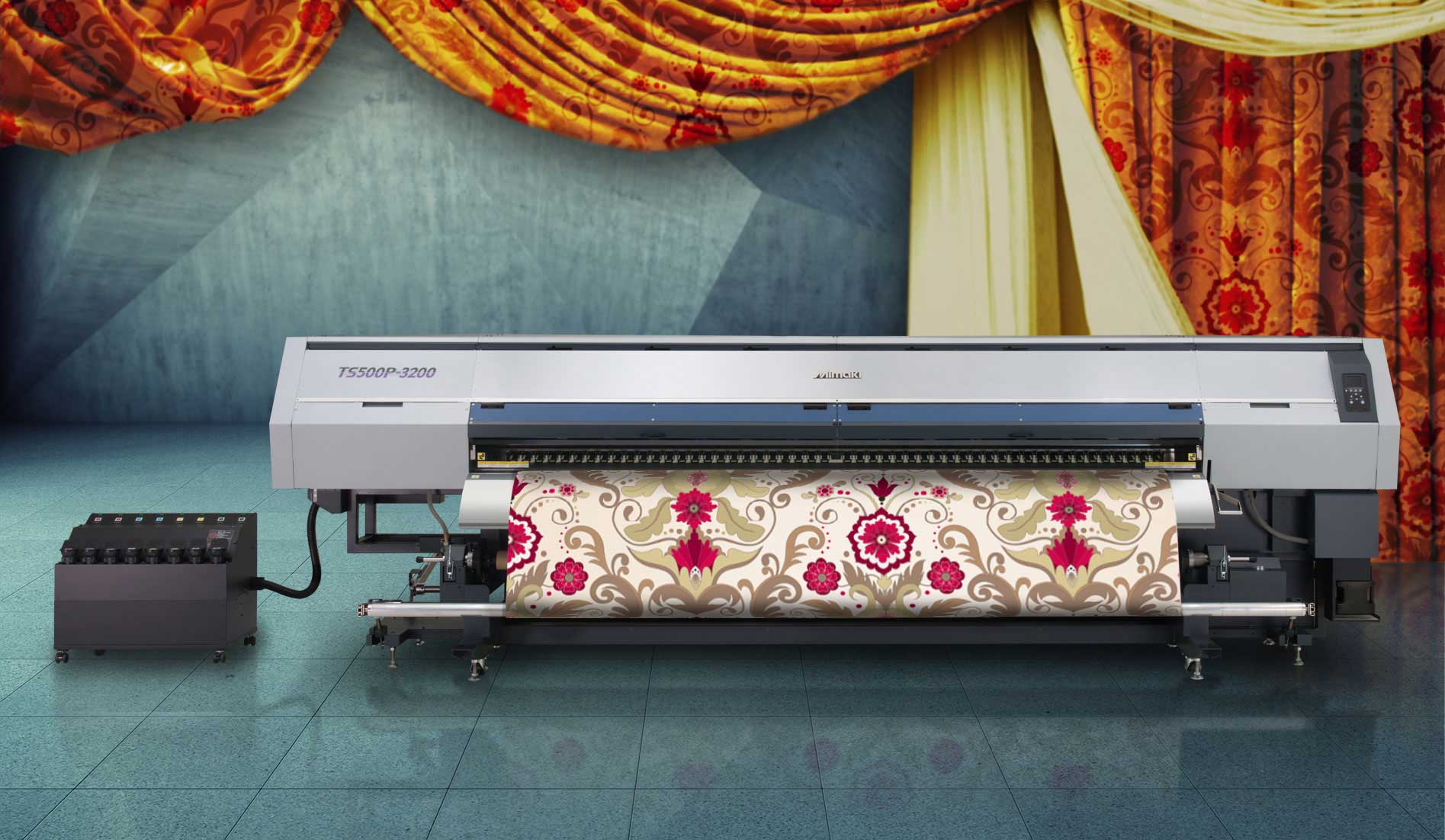

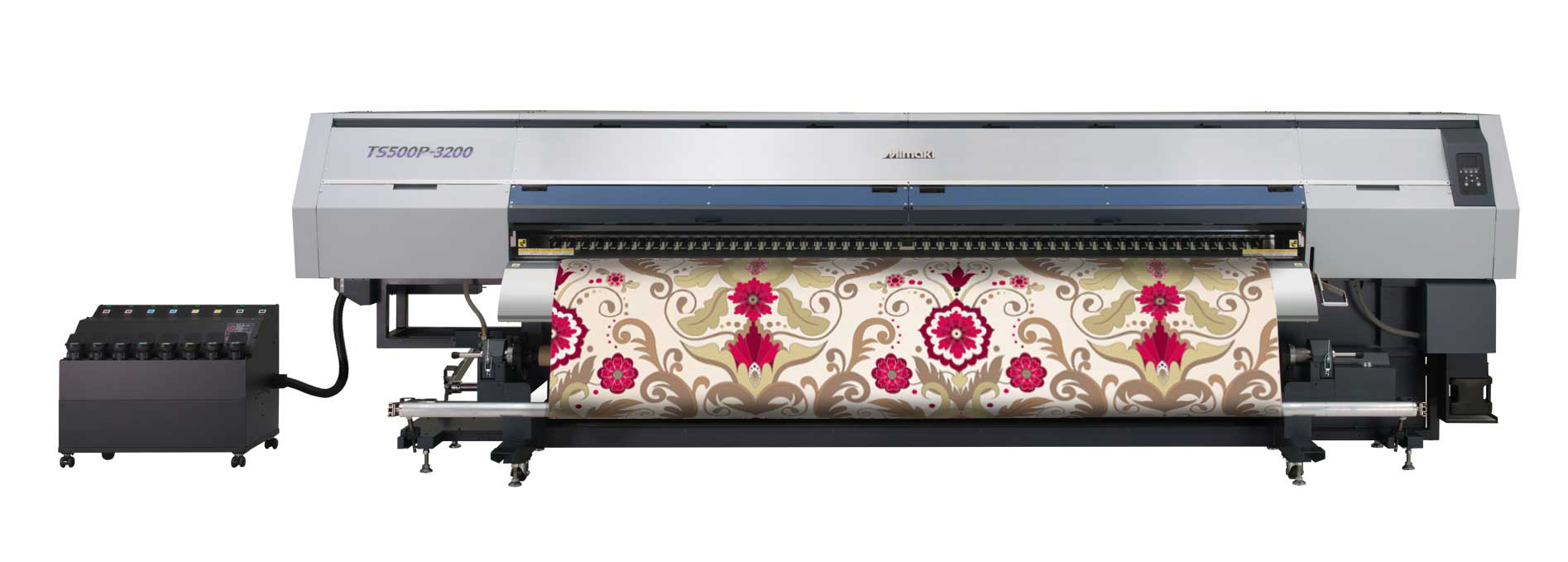

TS500P_KeyVisual_NoBackgroundMimaki’s latest grand-format transfer paper printer delivers the ultimate in high productivity for the exhibition, retail and home furnishing markets with its combination of speed and high quality output. The machine’s industrial build quality and innovative technical features ensure new levels of performance and reliability.

TS500P-3200 delivers • • •

  • Maximum print speed of 180m2/h (360 x 360dpi, 2 pass, Bi)
  • New 12 x printhead configuration in 3-row staggered array
  • New Sb310 high performance, low-cost sublimation transfer ink
  • External Bulk Ink System for long-run continuous printing with 3 litre containers
  • Mimaki Advanced Pass System (MAPS)
  • Nozzle Check Unit (NCU) ensures reliable continuous print operation
  • Cockling reduction transfer mechanism for higher quality print

[/wptabcontent]
[wptabtitle]Applications[/wptabtitle]
[wptabcontent]

Applications of TS500P-3200

TS500P-3200_applications

  • Home furnishing & upholstery fabrics including Bedding and Curtains
  • Soft signage
  • Textile retail PoS
  • Light boxes
  • Exhibition and Portable display Graphics
  • Wall art
  • and much more…

[/wptabcontent]
[wptabtitle] Specifications[/wptabtitle] [wptabcontent]

Specifications, options and supplies of TS500P-3200

Specifications

Item TS500P-3200
Print head On-demand piezo head 12 heads (In-line 4 head x 3 staggered alignment)
Print resolution X-direction : 360, 540, 720, 1,080dpi
Y-direction : 360, 540, 720dpi
Drop size Minimum: 6pl, Maximum: 25pl
Head gap Manual stepless adjustment 2.0mm – 7.0mm (3.0mm is the standard value)
Ink type Dye Sublimation transfer ink-SB310
(Bl, M, Y, K)
Ink set 4 colour (Bl, M, Y, K)
Ink volume 2 litre ink bottle
(each ink can be filled to the ink supply unit up to 3L)
Effective print width 3,290mm
Media
specifications
Max. width 3,300mm
Roll weight Up to 130kg
Media thickness 0.2mm or less
Media cutter Cutting in Y direction by cutter on the head
Interface USB2.0 / Ethernet 1000BASE-T
Power supply Single-phase: AC 200V ~ 240V (±10%), 50/60 Hz (±1Hz), 29A or less
Power consumption 6960VA or less
Safety standard VCCI class A / FCC class A / UL60950-1ETL / CE Marking (EMC, Low
voltage, Machinery) CB test / RoHS/ REACH / Energy Star / RCM
Dimensions (W x D x H) Main unit : 5,620 x 1,800 x 1,820mm
Ink supply unit : 950 x 510 x 730mm
Weight Main unit : 1,500kg
Ink supply unit : 30kg



Supplies

Item Product No. Note
Sublimation
Dye Ink
Sb310
Blue SB310-BLT-BB 2 litre bottle
Magenta SB310-MT-BB
Yellow SB310-YT-BB
Black SB310-KT-BB
Flushing Liquid 03 FL003-Z-BB 2 litre bottle
Flushing Liquid 03 maintenance kit ML003-Z-K1 200ml bottle /  Dropper (x 2)



Options

Item Product No. Note
Mimaki Target Colour Emulator SCE-001 Colour emulation software and colorimeter
TxLink3 Standard STX-0008 High-end software model
TxLink3 Professional STX-0009 High-end software model with colour separation processing capability

[/wptabcontent]
[wptabtitle] Features[/wptabtitle] [wptabcontent]

Features of TS500P-3200

Maximum-print-speedMaximum print speed of 180m2/h for high productivity

The TS500P-3200 optimizes the printing speed and quality to produce the desired print results. For this purpose, it provides a wide range of printing modes, from the draft printing mode (which operates at the maximum speed of 180m2/h) to high-quality printing mode.


Cockling-reduction media transportation mechanism ensures stable printing

Cockling-Reduction_abcdTS500P-3200 incorporates innovative features to reduce the effects of ‘cockling’ (the wrinkling of the media surface due to high levels of ink absorption, particularly when using low-cost or thin transfer papers).

  1. Two Post Heaters with independent temperature control gradually heat the media after printing to reduce ‘cockling’

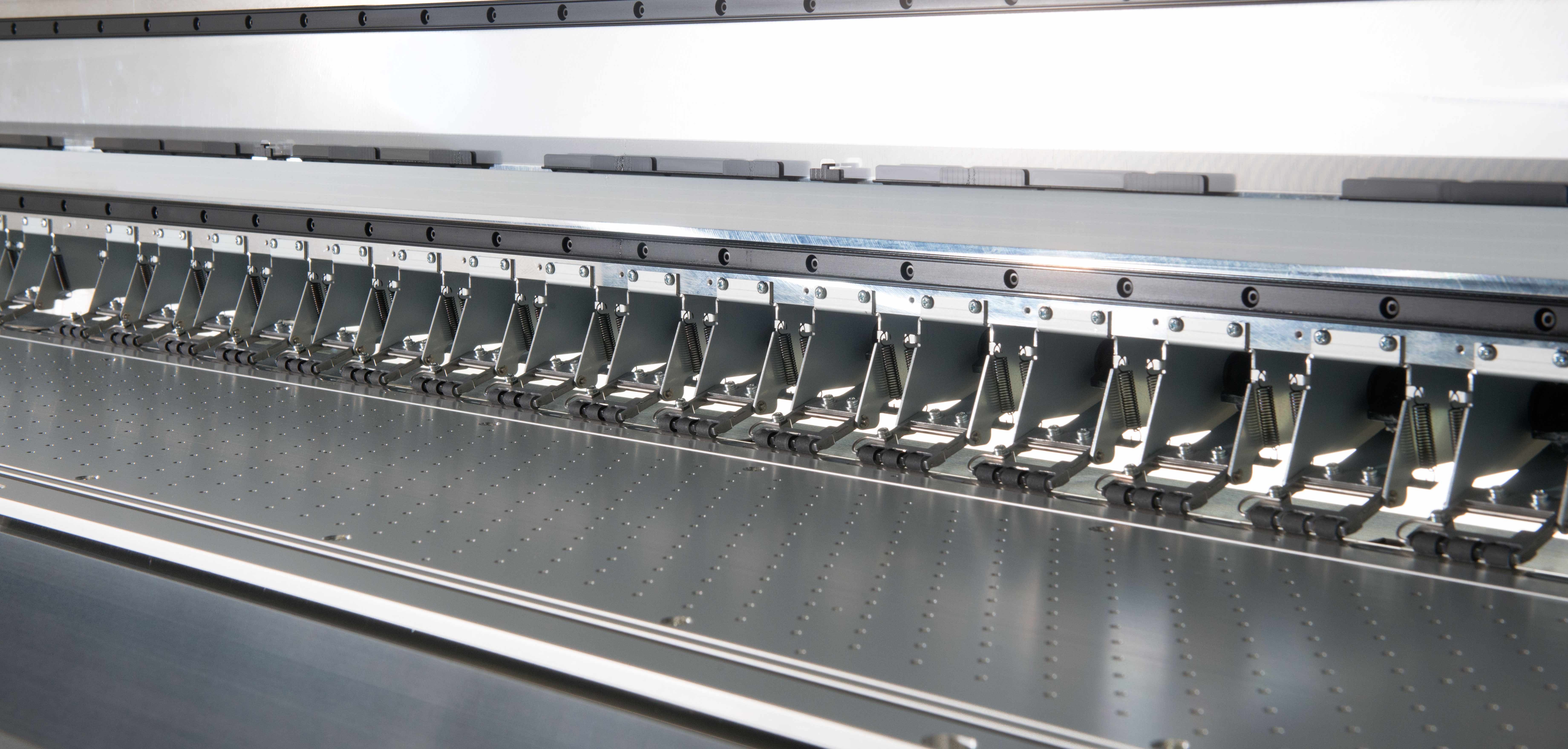

  2. Vacuum media hold-down system smooths out cockling effects with vacuum suction beneath the platen
  3. Media

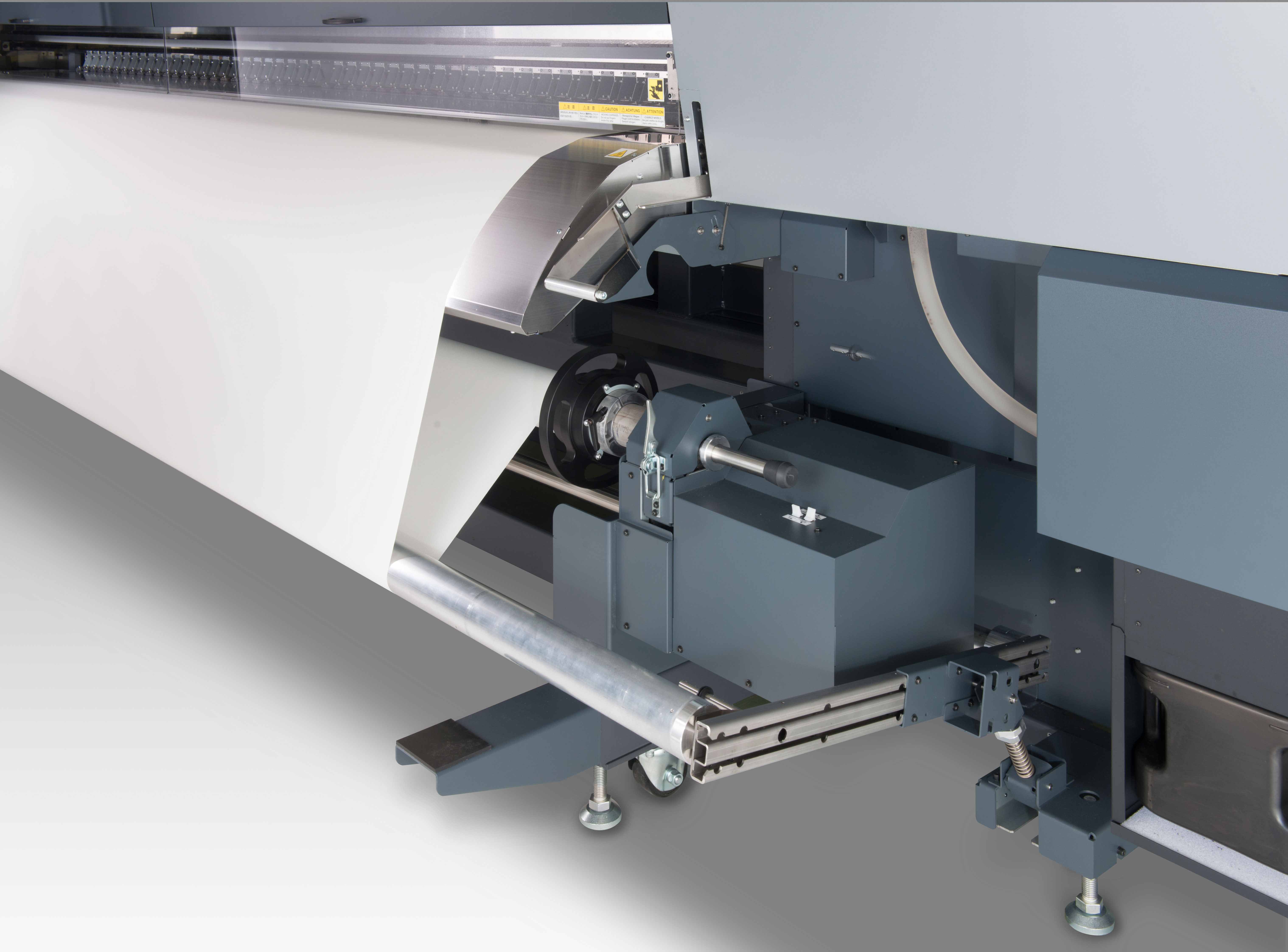

  4. Auto Media Feeder (AMF) maintains stable media feeding and take-up by automatically applying the correct tension

12x-printhead_plain12 x Printhead configuration in staggered array



  • 12 print heads
  • 1 head: 800 nozzles (200 nozzles x 4 row)
  • For each colour, 3 print heads are staggered in-line




MAPSMimaki Advanced Pass System (MAPS)

To prevent banding, swath boundaries are overprinted and boundaries prone to banding are printed with fewer ink droplets.






Continious uninterrupted printing features

Continuous Uninterrupted Printing Features
Continuous operation support minimizes the downtime
In the event of a nozzle malfunction not being repairable by the use of the maintenance function, printing can continue by the use of another nozzle, without any loss of productivity or a reduction in image quality.

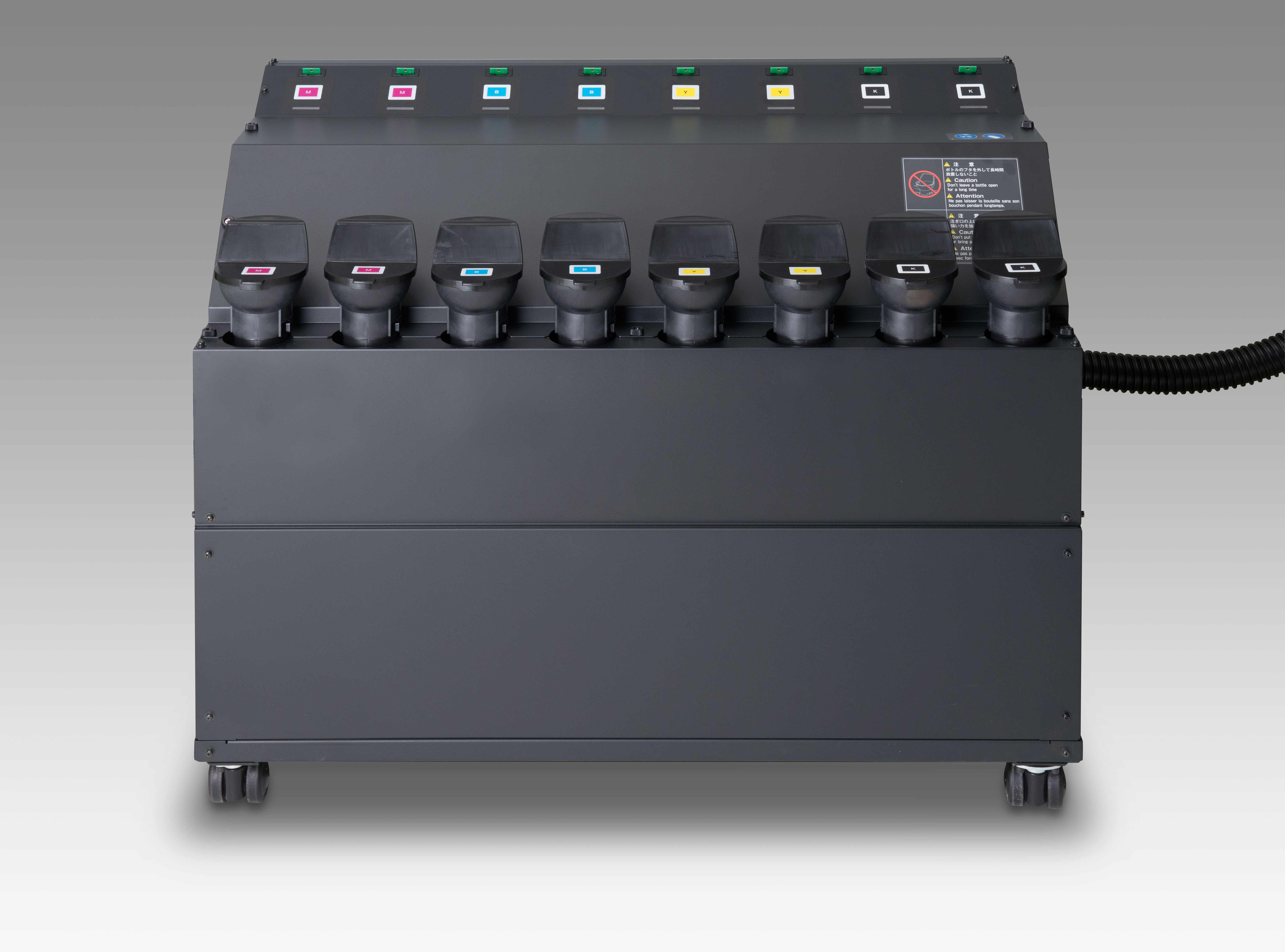

Built-in large (3 L) ink containers for long-time continuous printing
Continuous operation support pack minimizes the downtime. Large (3 L) ink containers are installed in an external ink supply unit. Ink can be filled into the container during long-time continuous printing. A degassing module is installed on the printhead carriage to allow the use of affordable undegassed inks.


Sophisticated RIP software maximizes the performance of TS500P-3200

Bundeld RIP Software
Rasterlink-6



Optional
TxLink3

[/wptabcontent]
[wptabtitle]Downloads[/wptabtitle] [wptabcontent]

Downloads of TS500P-3200

Please download the Mimaki TS500P-3200 brochure below.

TS500P-3200 Brochure (LowRes)



[/wptabcontent]
[wptabtitle]Images[/wptabtitle] [wptabcontent]

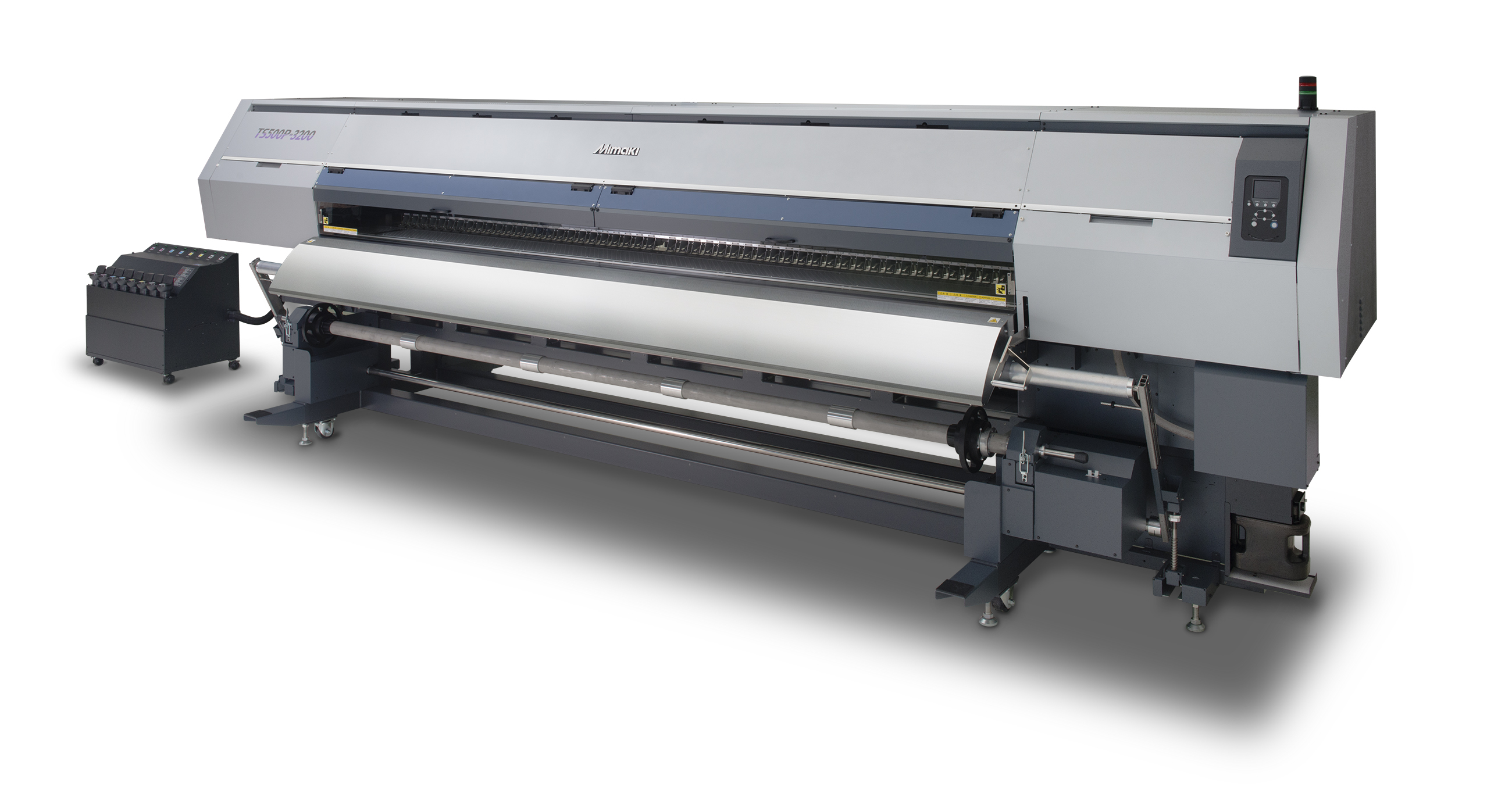

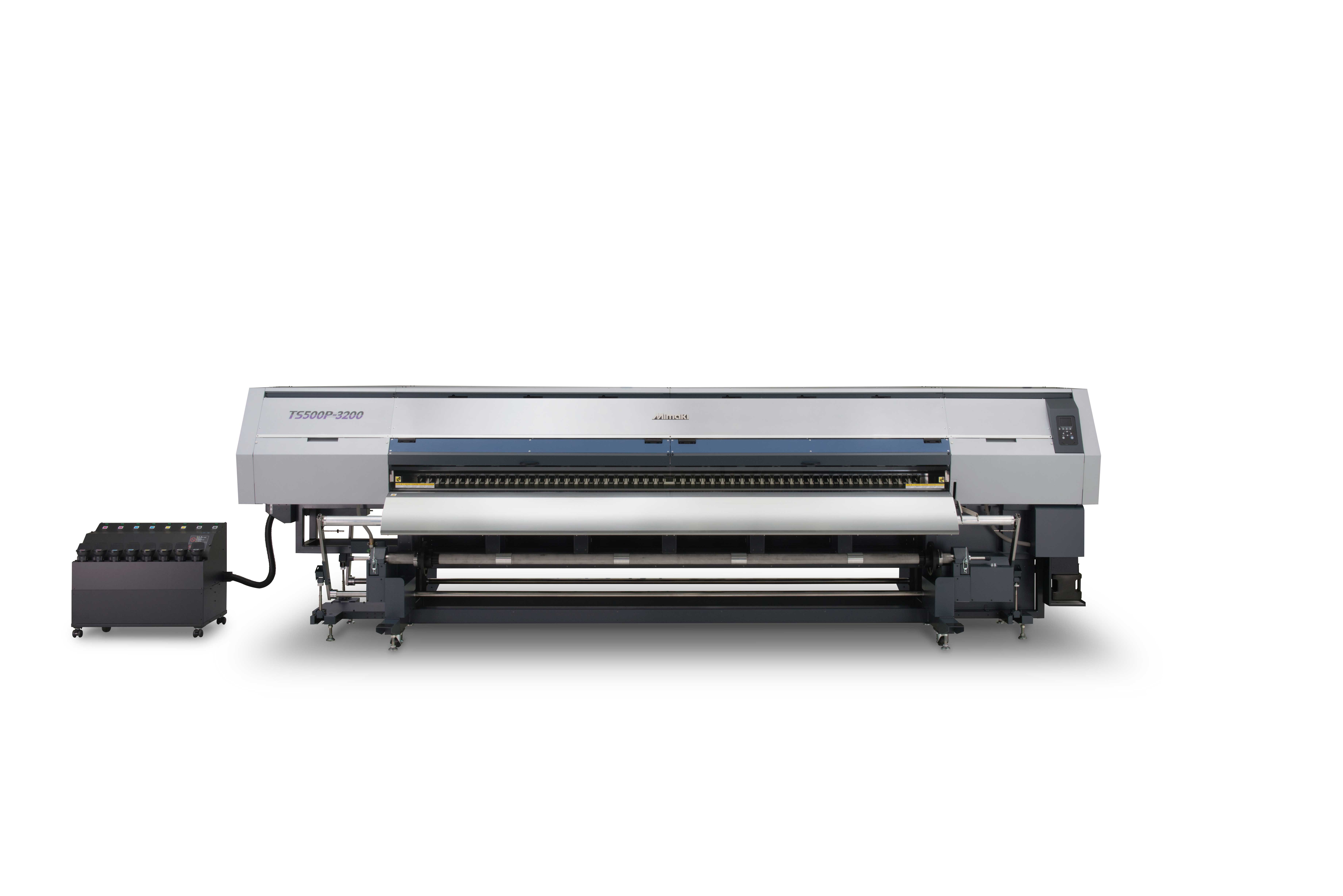

Product images of the TS500P-3200

[/wptabcontent]
[/wptabs]

TS300P-1800

[wptabs style=”wpui-narrow” mode=”horizontal”] [wptabtitle]TS300P-1800[/wptabtitle] [wptabcontent]

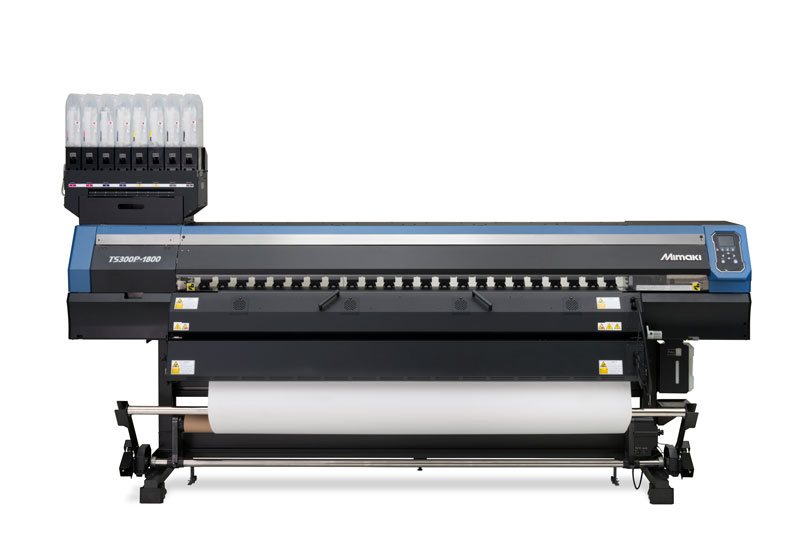

A new generation high-speed dye sublimation textile printer

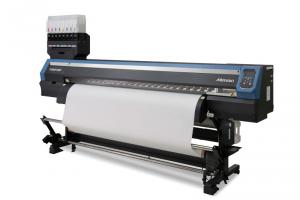

TS300P-1800Developed specifically for the textile print industry, the revolutionary new Mimaki TS300P-1800 delivers cost effective dye sublimation printing while maintaining high quality and high productivity. Perfectly suited to the creation of fashion, apparel, sportswear, furnishings and PoS, the TS300P-1800 uses state-of-the-art technology to set new performance benchmarks for the sector.

TS300P-1800 delivers •••

  • Maximum print speed of 115m2/h (360 x 360dpi, 1 pass, Bi)
  • New Sb410 high performance, affordable sublimation transfer ink
  • Mimaki MBIS3 Bulk Ink System for long-run continuous printing
  • Latest Mimaki MAPS4 Advanced Pass System
  • Nozzle Check Unit (NCU) ensures reliable continuous print operation
  • Cockling reduction transfer mechanism for higher quality print

[/wptabcontent]
[wptabtitle] Applications[/wptabtitle] [wptabcontent]
ts300p-1800 applications

Applications of TS300P-1800

  • Fashion and Apparel
  • Sportswear
  • Home furnishing & upholstery fabrics
  • Soft signage
  • Textile retail
  • PoS
  • Exhibition Graphics
  • Wall art
  • and much more…

[/wptabcontent]
[wptabtitle] Specifications[/wptabtitle] [wptabcontent]

Specifications of TS300P-1800

  TS300P-1800
Printhead On-demand piezo head (4 in-line printheads)
Print resolution 360dpi, 540dpi, 720 dpi, 1080 dpi
Maximum print width 1,940 mm (76.4 in)
Maximum media width 1,950 mm (76.8 in)
Ink Type/Color Sb410(Bl,M,Y,K,Lbl,Lm)
Package size 2L Ink pack
Media thickness 1.0 mm or less
Rolled media weight 40 kg (88 lb) or less
Certifications VCCI class A, FCC class A, ETL UL 60950-1CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, REACH, Energy Star, CCC, RCM
Interface USB 2.0 Hi-speed / Ethernet 1000BASE-T
Power supply Single-phase AC100 ­­­– 120V / AC200 – 240V
Power consumption (AC100V)1.44kW / (AC200V)1.92kW
Operational environment Temperature: 20 – 30 °C ( 68 – 86 °F )Humidity: 35 – 65% Rh (Non condensing)
Dimensions (W × D × H) 3,200 × 850 × 1,857 mm (126 x 33.4 x 73 in )
Weight 213 kg (469.6 lb)

[/wptabcontent]
[wptabtitle] Features[/wptabtitle] [wptabcontent]

Features of TS300P-1800

Maximum print speed of 115m2/h for high productivity

The TS300P-1800 optimizes the printing speed and quality to produce the desired print results. For this purpose, it provides a wide range of printing modes, from the draft printing mode (which operates at the maximum speed of 115m2/h) to high-quality printing mode
Speed TS1800P-1800


‘Cockling’ reduction features

TS300P-1800 incorporates a number of innovative new features to reduce the effects of ‘cockling’ (the wrinkling of the media surface due to high levels of ink absorbtion, which is particularly prevalent where low-cost or thin transfer papers are being used).
ts300P-1800 cockling

  1. High-gap print head with high accuracy ink drop placement ensures clear, sharp print
  2. Vacuum media hold-down system, smooths out cockling effects by using vacuum suction beneath the platen
  3. Larger media press plates reduce media uplift immediately after printing
  4. Auto Media Feeder (AMF) maintains stable media feeding and take up by automatically applying the correct tension




New Sb410 High Performance Ink Sets

SB410The new Sb410 Ink sets offer a number of additional benefits over the conventional Sb53 inks, including;

  • Reduced cost significantly improves profitability
  • Improved ink resolvability and stability ensures better ink flow and jetting with easier and less frequent cleaning of nozzles required
  • Low-sedimentation formulation delivers beautiful, vibrant, high-density printing
  • Low smoke emission is beneficial for the work environment and improves production efficiency
  • Mimaki Bulk Ink System 3 (MBIS3) utilises large 2 litre ink packs to deliver profitable long-run continuous print




MAPS4 Advanced Pass System

MAPS is Mimaki’s unique anti-banding feature. To prevent banding, swath boundaries are overprinted and boundaries prone to banding are printed with fewer ink droplets.
mimaki maps 4


Continuous Uninterrupted Printing Features

continuous-uninterrupted-printing-featuresNozzle Recovery Function
In the event of a nozzle malfunction not being repairable by the use of the maintenance function, printing can continue by the use of another nozzle, without any loss of productivity
or a reduction in image quality.
Uninterrupted Ink Supply System (UISS)
Two ink packs per colour can be set with the UISS function. When an ink bottle runs out, another bottle of the same colour automatically starts supplying ink.


Sophisticated RIP software maximizes the performance of TS300P-1800

A choice of RIP software is included:

rasterlink 6Userfriendly RIP Rasterlink 6

  • More beautiful and advanced print results are achieved by following a user-friendly interface that is easy to operate
  • Colour replacement function enhances the ability to re-create printed images
  • Print colour can be simulated on Illustrator / Photoshop without an actual print *This function requires MPM2 (Mimaki Profi le Master 2)
  • Program update and profi le download can be easily performed via internet

Professional software RIP for multi colour separation TxLink 3 Lite
txlink3-lite mimaki

  • Spot colour can be assigned to each colour on separation plates
  • ICC profi le creation from CMYK + spot colours
  • Colour replacement on raster data
  • A variety of panelling functions, including step-and-repeat layout, which are useful for textile designing

[/wptabcontent]
[wptabtitle]Downloads[/wptabtitle] [wptabcontent]

Downloads of TS300P-1800

Please download the Mimaki TS300P-1800 brochure below

TS300P-1800 Brochure (LowRes)


[/wptabcontent]
[wptabtitle]Images[/wptabtitle] [wptabcontent]

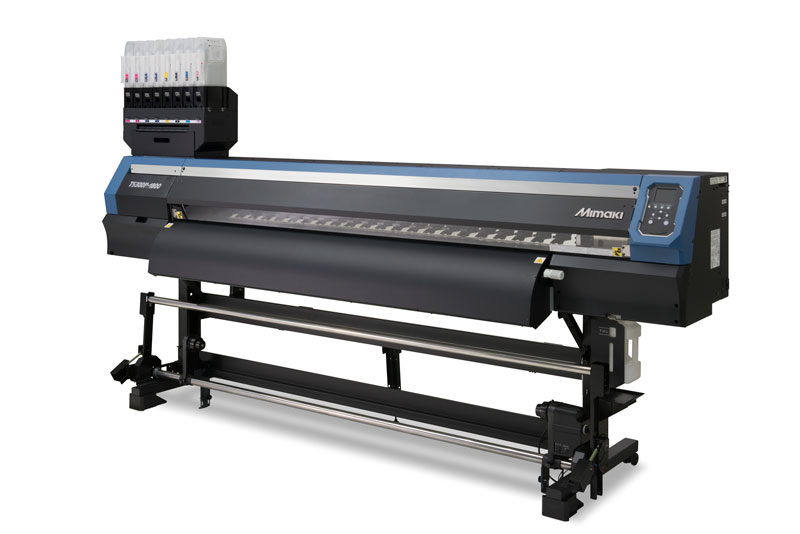

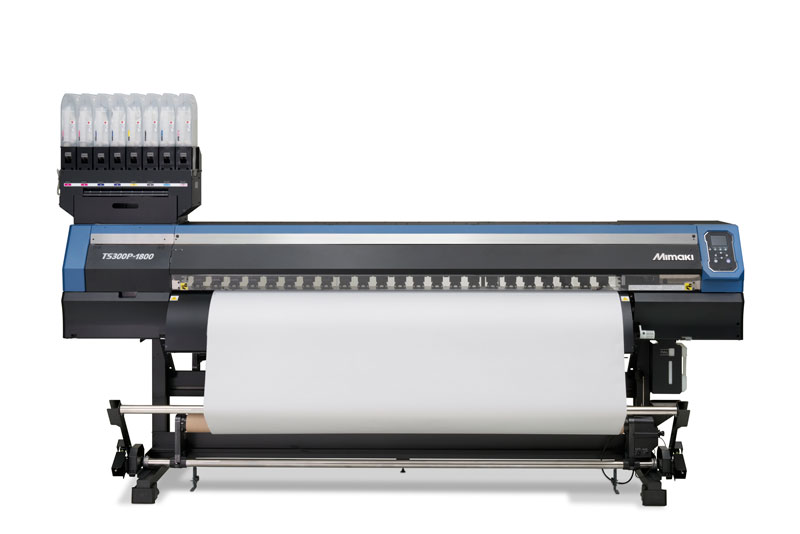

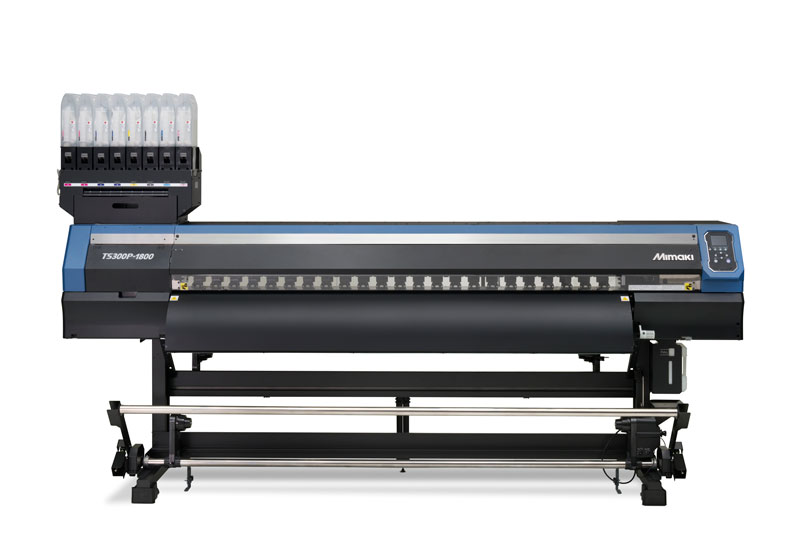

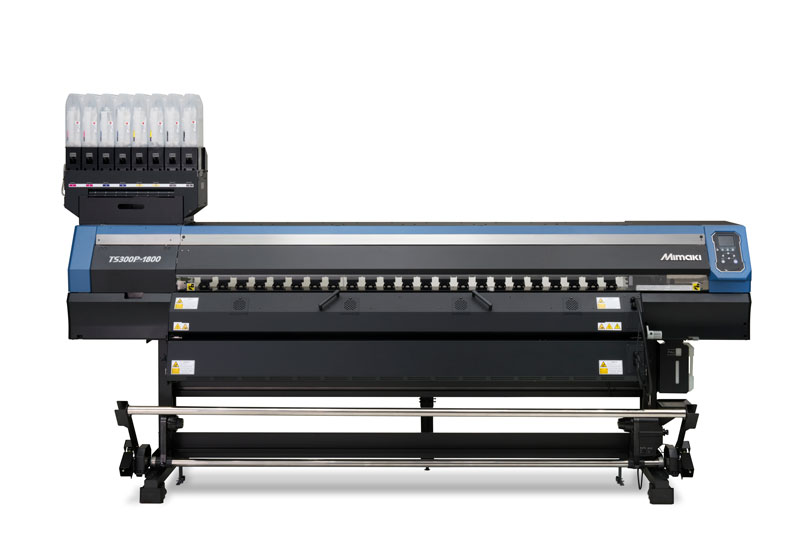

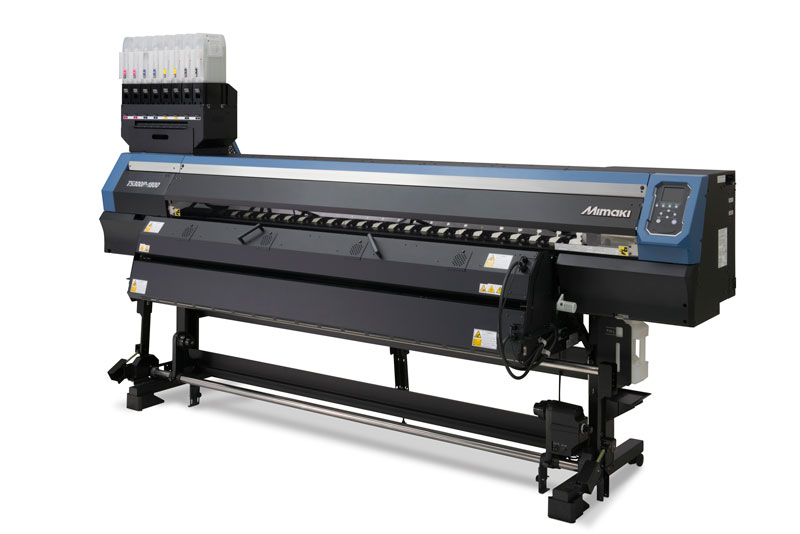

Product images of the TS300P-1800


[/wptabcontent]
[/wptabs]
