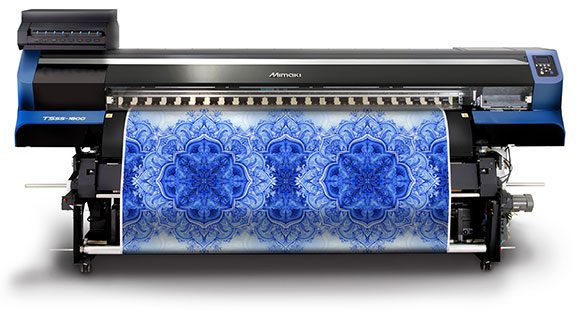

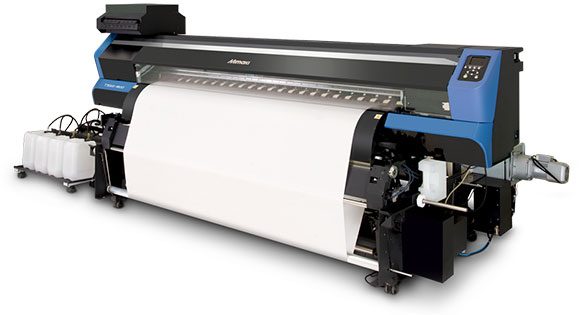

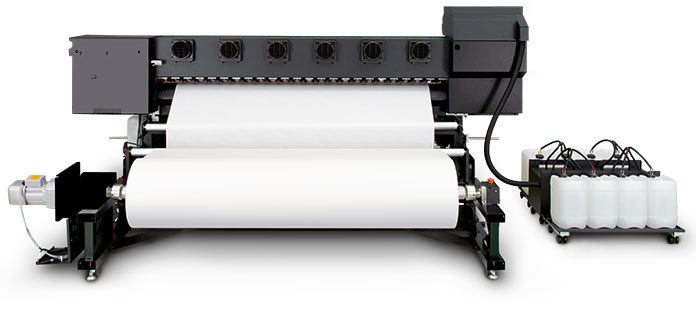

TS55-1800

The (R)evolution of Textile Printing

Designed for users that demand productivity at high quality on high speed. The TS55-1800 delivers just that. Utilized with a plotter roll for small runs or with a mini jumbo roll for long runs, the TS55-1800 grows alongside with your company.

  • Possible to print on high resolution (480 x 600DPI)
    with a higher ink density using one-pass printing at 140m2/h
  • With the Optional Mini Jumbo Roll it reaches a level of productivity at market disruptive pricing2
  • Continuous operation with Mimaki’s Nozzle Check Unit and the Nozzle Recovery System
  • Available in very competitive 2L packs or low cost 10L tanks, the new Sb610 ink sets allows you to grow your business profitably
  • Upgraded with the newest TxLink4. This dedicated textile RIP software features new functionalities and improvements on usability

Create…

Interior fabrics, sports and fashion apparel, flags, tapestry and much more…

Specifications, options and supplies of TS55-1800



Specifications

Printhead Head Assy Stagger layout
Print resolution 480/600/1,200dpi
Max. print width 1,940 mm (76.4 in)
Max. media width 1,950 mm (76.8 in)
Rolled media weight 45 kg (99.2 lb) or less
Ink slot No. 8
Ink set 4-colors / 6-colors / 7-colors / 8-colors
Ink Type/Color Sb610 (Bl/M/Y/K/Lbl/Lm/Lk/Fy/Fp)*1
Capacity 2L Ink pack
Certifications VCCI Class A / FCC Class A / Compliant with IEC 62368-1, ETL /
CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/
CB Report / REACH / Energy Star / RCM / EAC
Interface Ethernet 1000BASE-T (Recommended) / USB 2.0 Hi-speed
Power Single phase AC100 – 120V/ AC200 – 240V x1
Power consumption (AC100V) 1.44kW or less / (AC200V) 1.92kW or less
Operational environment Temperature: 20 – 30 °C (68 – 86 °F)
Humidity: 35 – 65% Rh (Non condensing)
Dimensions (W × D × H) 3,240 x 713 x 1,857 mm (127.5 x 28.0 x 73.1 in)
Weight 202 kg (445.3 lb)

*1 Lk, Fy, and Fp are to be available later.

Options

Mini jumbo roll unit (Option)
Roll media size Max. weight: Winding 100 kg (220.5 lb) / Feeding 300 kg (661.4 lb)
Max. diameter: Winding 290 mm (11.4 in) / Feeding 600 mm (23.6 in)
Max. width: 1,910 mm (75.1 in) / Max. printable width: 1,900 mm (74.8 in)
Power Single phase AC200-240V x 1
Power consumption (AC200V) 1.0kW or less
Dimensions (W × D × H) Unit size:
2,770 x 905 x 600 mm (109.0 x 35.6 x 23.6 in)
Size with the main unit:
3,240 x 1,850 x 1,857 mm (127.5 x 72.8 x 73.1 in)
Weight 100 kg (220.5 lb)



10kg ink supply unit (Option)
Ink set 4-colors / 6-colors / 7-colors / 8-colors
* The 6C, 7C and 8C are scheduled to be available later.
Ink Type/Color Sb610 (Bl/M/Y/K/Lbl/Lm/Lk/Fy/Fp)
Capacity 10kg (per color)
* Lk, Fy and Fp are by 2L.
Dimensions(W×D×H) Unit size:
824 x 1,035 x 383 mm (32.4 x 40.7 x 15.0 in)
Size with the main unit:
4,108 x 1,035 x 1,484 mm (161.7 x 40.7 x 58.4 in)
Weight 35 kg (77.2 lb)



Extended heater (Option)
Power Single phase AC100 – 120V/ AC200 – 240V x1
Power consumption (AC100V) 1.0kW or less / (AC200V) 1.0kW or less
Dimensions (W × D × H) Unit size:
2,336 x 108 x 236 mm (91.9 x 4.2 x 9.2 in)
Size with the main unit:
3,240 x 775 x 1,857 mm (127.5 x 30.5 x 73.1 in)
Weight 15 kg (33.1 lb)

Supply

Ink set

Sb610
[Bl,M,Y,K,Lbl,Lm,Lk,Fp,Fy]
Bl M Y K
Bl M Y K Lbl Lm
Bl M Y K Lbl Lm Fp Fy

Features of TS55-1800

Quality printing

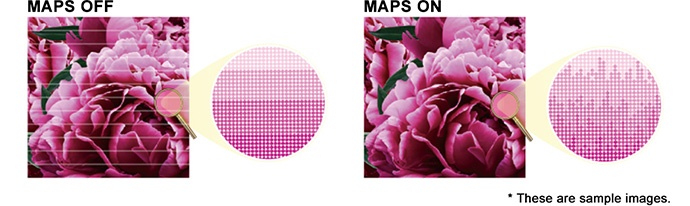

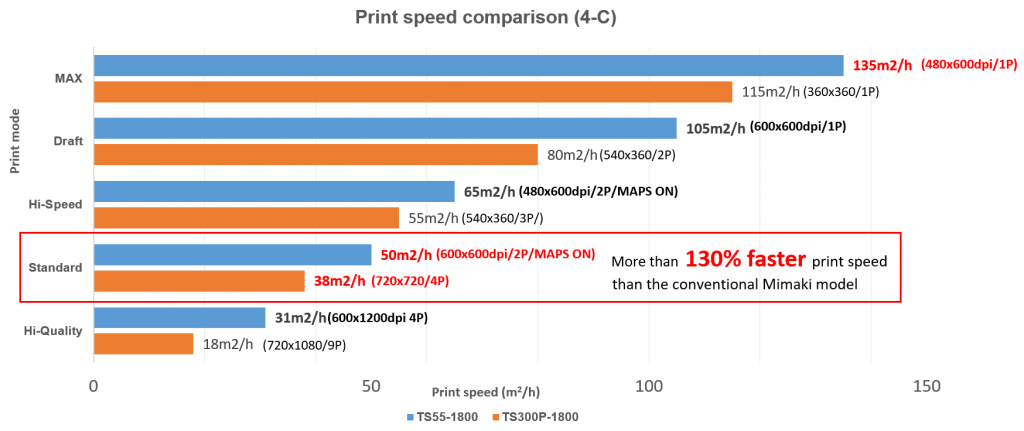

With the TS55-1800 it becomes possible to print on high resolution (480 x 600DPI) with a higher ink density using one-pass printing at 135m2/h. Our unique MAPS system (Mimaki Advanced Pass System), which eliminates banding, is already available at two-pass printing.


Productivity

With the “first in its class”, optional Mini Jumbo Roll the TS55-1800 reaches a level of productivity at market disruptive pricing. 2500 linear meters on one roll Mimaki Vision Jet-X coated transfer paper (57g/m2) in combination with 10L ink tanks will change the perception of productivity in this market segment.





Continuous operation

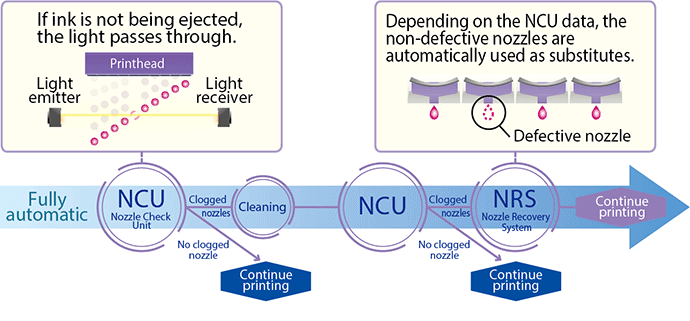

Unattended printing with Mimaki’s Nozzle Check Unit and the Nozzle Recovery System. The NCU automatically cleans the print head when nozzles malfunction. When nozzles are not repairable, printing can continue by the use of another nozzle, without the loss of productivity or a reduction in print quality.


Newly developed Sb610 ink set

Available in very competitive 2L packs (with dual BMYK or BMYK Lb Lm Fluor pink and Fluor yellow) or low cost 10L tanks (with dual BMYK) the Sb610 ink sets allows you to grow your business profitably. This OEKO-TEX certified ink is suitable to print skin-friendly clothing and other textiles like bed linen, table cloths etc.







Textile RIP TxLink4

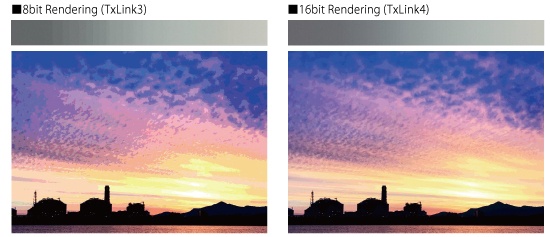

With the launch of the TS55-1800 TxLink3 is upgraded to TxLink4. This dedicated textile RIP software features new functionalities and improvements on usability such as: 16Bit engine improving rendering and RIP speed, effective nesting saving media and variable data printing.



Downloads

Brochure

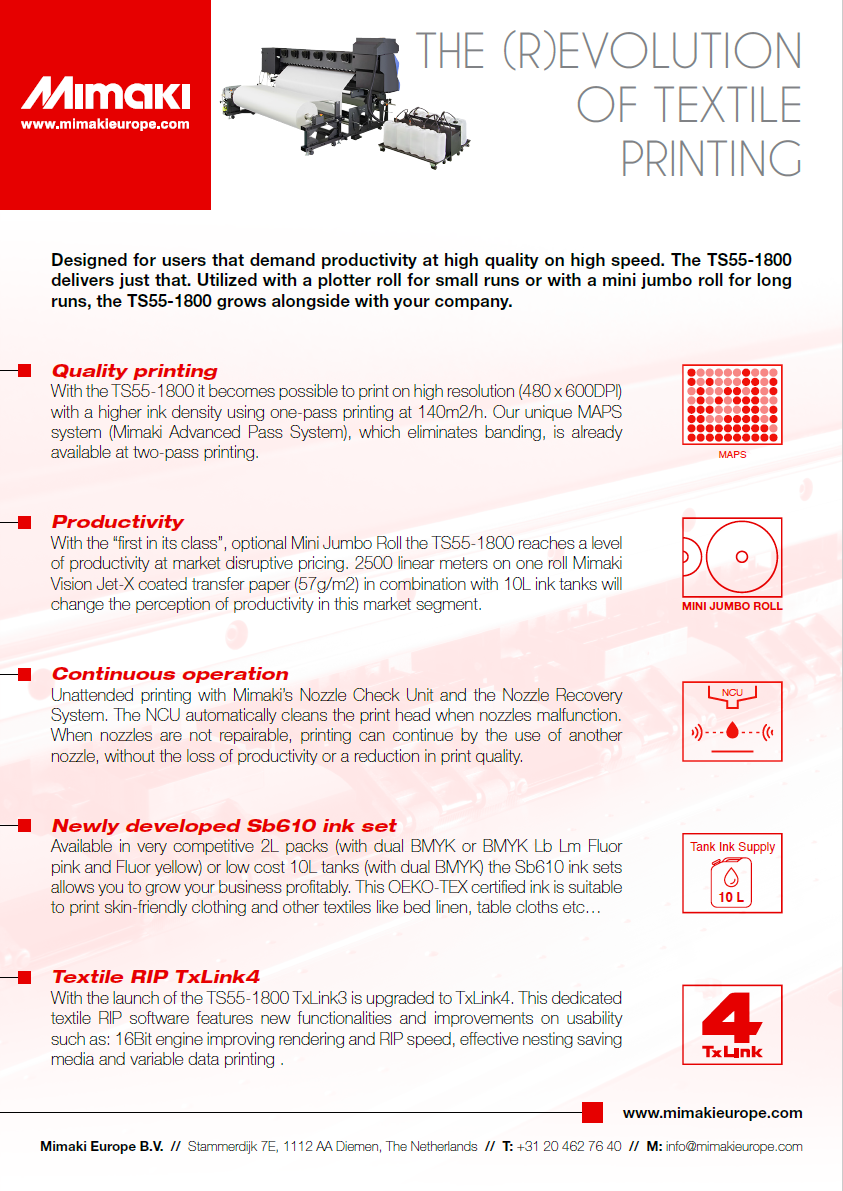

One Pager
