Expert printing made easy

Low Cost. High Return.

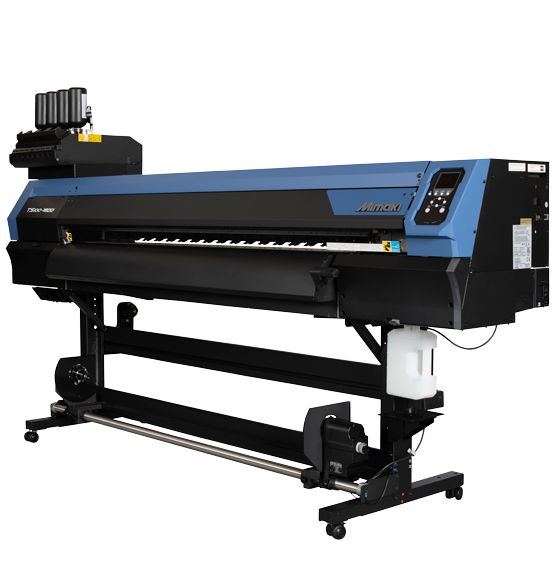

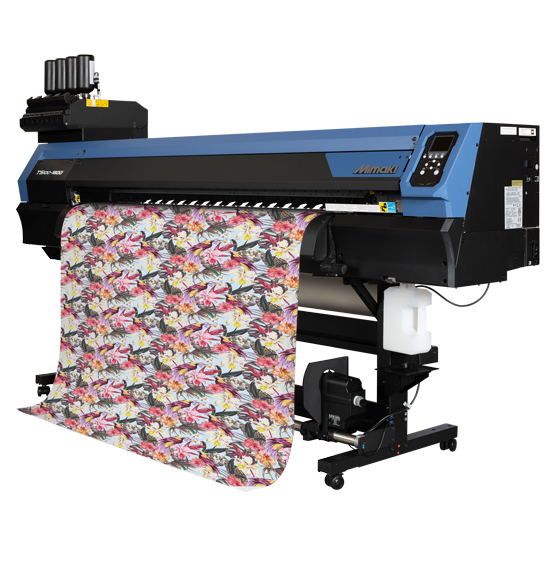

TS100-1600 Dye Sublimation Printer

Building upon Mimaki’s legacy of dye sublimation printers, the TS100-1600 provides a unique opportunity for all textile printing companies to meet the demands of the growing transfer market.
Offered at an entry-level price, Mimaki continues in its pursuit of a sustainable solution, while delivering high print performance with maximum speeds up to 70m2/h – setting new standards in dye sublimation printing.
As the economical printing solution for fashion, soft signage, home & interior, sportswear and sublimated products, the TS100-1600 is an absolute game-changer.
...

Highlighted features

...
  • Price/Performance ratio ...
    Providing value for money.
    Due to our cross-platform development of the “100 series”, Mimaki is once again setting a new standard for paper sublimation printing in both price and performance, with a maximum speed of up to 70 sqm per hour.
...
  • Print stability...
    Featured with well-known Mimaki core technologies.
    The TS100-1600 comes featured with all of Mimaki’s core technologies, including Maps4 to prevent banding, as well as NCU and NRS, a unique combination that automatically detects and replaces missing nozzles without interference of the operator.
...
  • DAS system ...
    Performs both a bi-directional and media feed adjustment.
    Introducing Mimaki’s -easy to operate- Dot Adjustment System (DAS), which automatically performs two adjustments: the bi-directional adjustment and the media feed adjustment.

    The bi-directional adjustment assures the drop landing accuracy for a perfect round dot, resulting in the highest possible print quality.

    The media feed compensation optimises the feeding of the media, eliminating horizontal banding.
...
  • Media Take-Up system...
    Delivered as standard with media take-up system.
    The printer comes fully equipped with a media take-up system that can handle rolls of up to 45kg.
textile printer

Dye sublimation inks

for high durability and colour intensity

The TS100-1600 comes with Mimaki’s high quality Sb610 dye sublimation ink in a 4 colour configuration. Sb610 ink, known for its rub-fastness, durability and colour intensity, will contribute to the range of applications you are able to print. Sb610 comes in convenient 1 litre bottles.

drops
certification

For even more confidence

our inks are OEKO-TEX® certified

Mimaki inks Sb610 are OEKO-TEX® certified. ECO PASSPORT by OEKO-TEX® is a mechanism by which textile chemical suppliers demonstrate that their products are suitable to print skin-friendly clothing and other textiles for end users.
This certificate therefore constitutes an important decision-making element when purchasing inks for textile production.

This printer includes Mimaki Core Technologies that offer the best print quality, maximum productivity and reduced exposure to risks that can delay production. See below list of core technologies that are included in the TS100-1600.

infinity

Productivity & Convenience

stars

Quality printing

ModelTS100-1600
Print head2 drop-on-demand piezoelectric head; stagger arrangement
Print resolutionY: 360 dpi, 720 dpi
X: 600dpi, 900 dpi
Drop sizeMin: 5pl, Max: 19pl
Head heightManual adjustment (3.0/3.5mm from platen)
Ink typeSb610
Ink colour4C (Bl, M, Y, K)
Ink supply1L bottle supply
Max printing width1,610mm
Max media width1,620mm
Media thickness1.0mm or less
Outside diameter250mm or less
Roll weight45kg or less
InterfaceUSB2.0 / Ethernet
Body weight168kg
Dimension (WxDxH)2775/700/1475mm
Power supplySingle phase (AC100~120/200~240V +/- 10%, 50/60Hz +/- 1Hz)
Power consumptionAC100V: 1.44kW / AC200V:1.92kW
Safety StandardsVCCI class A, FCC Class A, CE Marking (EMC Directive, Machinery and Low Voltage Directive), CB Certification, RoHS, RCM, EAC

Software RIP

The primary task of RIP (Raster Image Processor) software is to convert the different formats of the file to be printed into data the printer “understands” as raster data.

software
RasterLink 7
Mimaki’s software RIP, RasterLink 7 comes in the box free of charge.
software
TxLink 4 (optional)
This dedicated textile RIP software is optional and has additional features for textile applications such as “step and repeat” and nesting.


Sb610

Dye Sublimation ink

Mimaki ink developed for fast printing on sublimation paper.

packaging
Packaging
1 litre bottle
colour
Colour
4 colours: BMYK
ink-type
Ink Type
Sublimation ink with very good rub fastness, durability and colour intensity.
