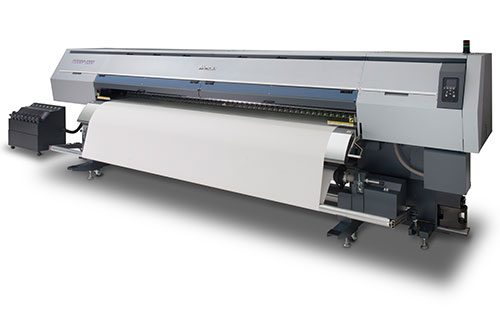

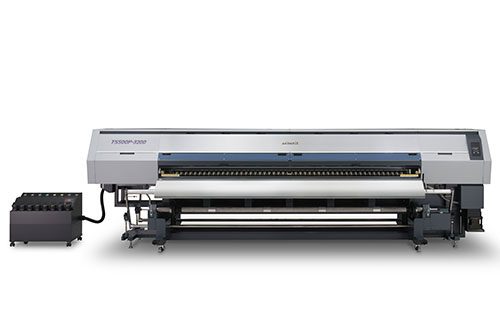

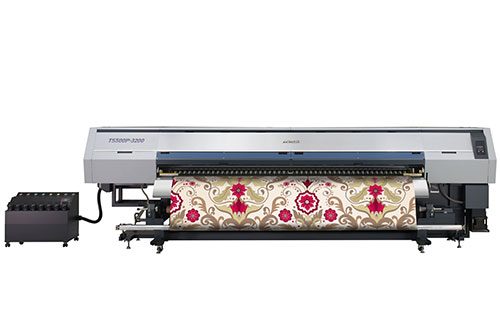

TS500P-3200
A high quality, super-wide sublimation transfer inkjet printer …
Mimaki’s latest grand-format transfer paper printer delivers the ultimate in high productivity for the exhibition, retail and home furnishing markets with its combination of speed and high quality output. The machine’s industrial build quality and innovative technical features ensure new levels of performance and reliability.
|
|
|
|
|
|
|
Create…
Home furnishing & upholstery fabrics including Bedding and Curtains, Soft signage, Textile retail PoS, Light boxes, Exhibition and Portable display, Graphics, Wall art and much more…
Specifications, options and supplies of TS500P-3200
Specifications
| Item | TS500P-3200 | |
| Print head | On-demand piezo head 12 heads (In-line 4 head x 3 staggered alignment) | |
| Print resolution | X-direction : 360, 540, 720, 1,080dpi Y-direction : 360, 540, 720dpi |
|
| Drop size | Minimum: 6pl, Maximum: 25pl | |
| Head gap | Manual stepless adjustment 2.0mm – 7.0mm (3.0mm is the standard value) | |
| Ink type | Dye Sublimation transfer ink-SB310 (Bl, M, Y, K) |
|
| Ink set | 4 colour (Bl, M, Y, K) | |
| Ink volume | 2 litre ink bottle (each ink can be filled to the ink supply unit up to 3L) |
|
| Effective print width | 3,290mm | |
| Media specifications |
Max. width | 3,300mm |
| Roll weight | Up to 130kg | |
| Media thickness | 0.2mm or less | |
| Media cutter | Cutting in Y direction by cutter on the head | |
| Interface | USB2.0 / Ethernet 1000BASE-T | |
| Power supply | Single-phase: AC 200V ~ 240V (±10%), 50/60 Hz (±1Hz), 29A or less | |
| Power consumption | 6960VA or less | |
| Safety standard | VCCI class A / FCC class A / UL60950-1ETL / CE Marking (EMC, Low voltage, Machinery) CB test / RoHS/ REACH / Energy Star / RCM |
|
| Dimensions (W x D x H) | Main unit : 5,620 x 1,800 x 1,820mm Ink supply unit : 950 x 510 x 730mm |
|
| Weight | Main unit : 1,500kg Ink supply unit : 30kg |
|
Supplies
| Item | Product No. | Note | |
| Sublimation Dye Ink Sb310 |
Blue | SB310-BLT-BB | 2 litre bottle |
| Magenta | SB310-MT-BB | ||
| Yellow | SB310-YT-BB | ||
| Black | SB310-KT-BB | ||
| Flushing Liquid 03 | FL003-Z-BB | 2 litre bottle | |
| Flushing Liquid 03 maintenance kit | ML003-Z-K1 | 200ml bottle /Â Dropper (x 2) | |
Options
| Item | Product No. | Note |
| Mimaki Target Colour Emulator | SCE-001 | Colour emulation software and colorimeter |
| TxLink3 Standard | STX-0008 | High-end software model |
| TxLink3 Professional | STX-0009 | High-end software model with colour separation processing capability |
Features of TS500P-3200

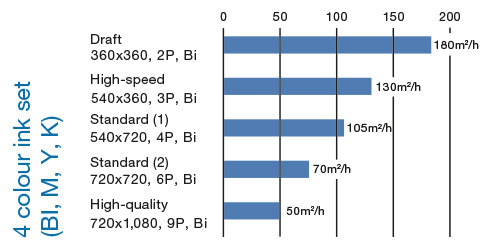

Maximum print speed of 180m2/h for high productivity
The TS500P-3200 optimizes the printing speed and quality to produce the desired print results. For this purpose, it provides a wide range of printing modes, from the draft printing mode (which operates at the maximum speed of 180m2/h) to high-quality printing mode.
Cockling-reduction media transportation mechanism ensures stable printing
TS500P-3200 incorporates innovative features to reduce the effects of ‘cockling’ (the wrinkling of the media surface due to high levels of ink absorption, particularly when using low-cost or thin transfer papers).
- Two Post Heaters with independent temperature control gradually heat the media after printing to reduce ‘cockling’
- Vacuum media hold-down system smooths out cockling effects with vacuum suction beneath the platen
- Media
- Auto Media Feeder (AMF) maintains stable media feeding and take-up by automatically applying the correct tension

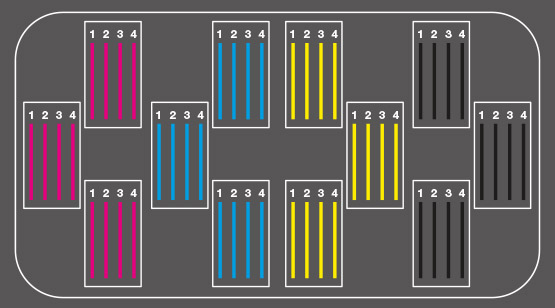

12 x Printhead configuration in staggered array
- 12 print heads
- 1 head: 800 nozzles (200 nozzles x 4 row)
- For each colour, 3 print heads are staggered in-line

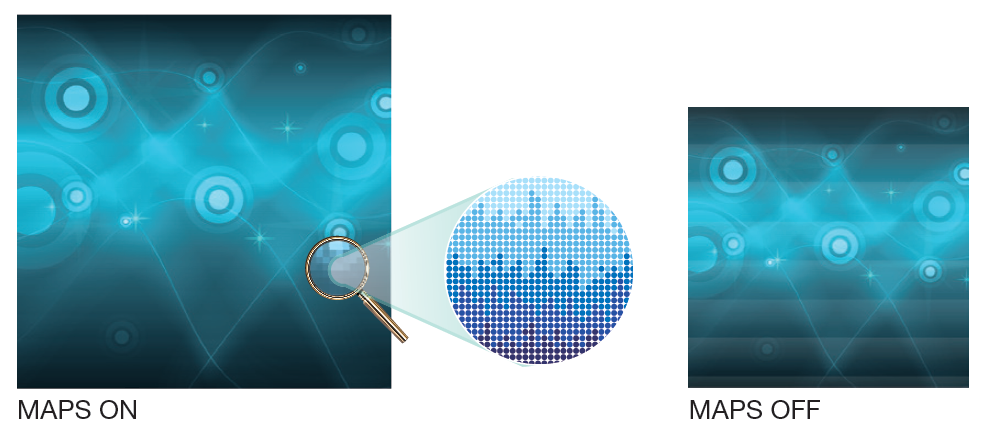

Mimaki Advanced Pass System (MAPS)
To prevent banding, swath boundaries are overprinted and boundaries prone to banding are printed with fewer ink droplets.

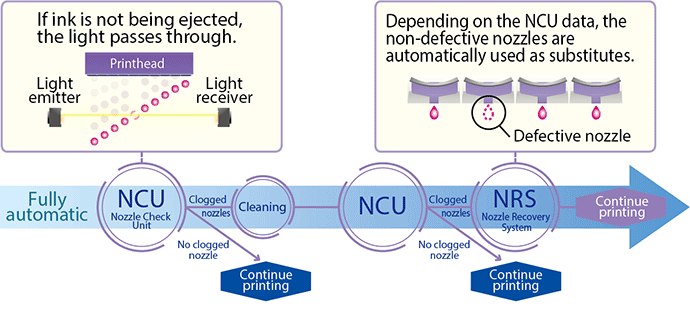

Continious uninterrupted printing features
Continuous operation support minimizes the downtime
In the event of a nozzle malfunction not being repairable by the use of the maintenance function, printing can continue by the use of another nozzle, without any loss of productivity or a reduction in image quality.
Built-in large (3 L) ink containers for long-time continuous printingÂ
Continuous operation support pack minimizes the downtime. Large (3 L) ink containers are installed in an external ink supply unit. Ink can be filled into the container during long-time continuous printing. A degassing module is installed on the printhead carriage to allow the use of affordable undegassed inks.
Sophisticated RIP software maximizes the performance of TS500P-3200
Bundeld RIP Software
Optional
