Give your creativity a glow up
With the all new TS330-1600 high-volume dye sublimation printer
High quality 1.6m dye sublimation inkjet printer
Unique features
- Versatile applications
With the variety of inks colours, including fluorescent colours, the range of vivid and eye-catching applications seems endless.With a proven track record for Mimaki’s Sb411 high quality sublimation transfer ink, including light and fluorescent colours, the creative possibilities for producing home interiors, sportswear and fashion apparel applications have never been so exciting.

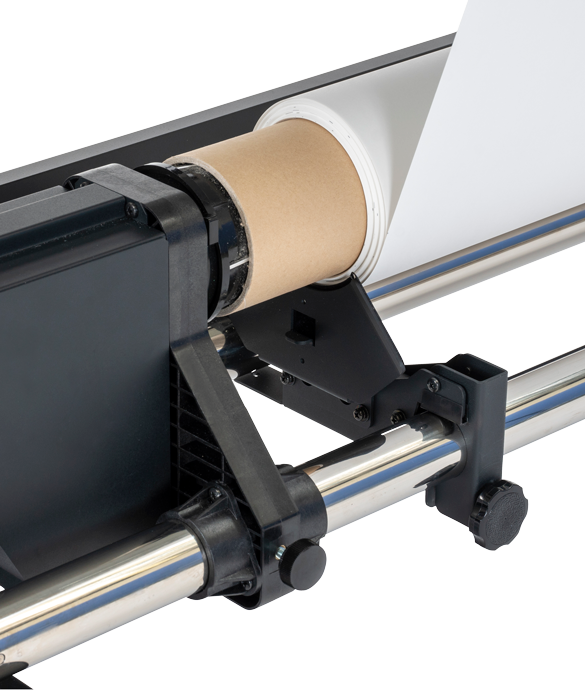

- Stable operationThroughput is increased while operator mistakes are reduced thanks to new and improved functionalities.Introducing an improved conveyance control using a dual-engine take-up unit, media edge guides, V-shaped cut function and a new post heater, stable paper transport is guaranteed.

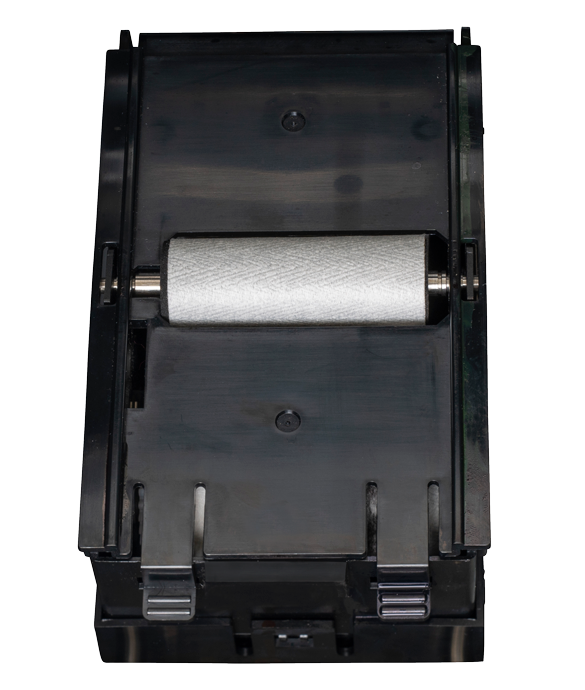

While the new cloth wiper, designed to soak ink and reduce ink splattering during the cleaning cycle, further enhance the stability of the TS330-1600.

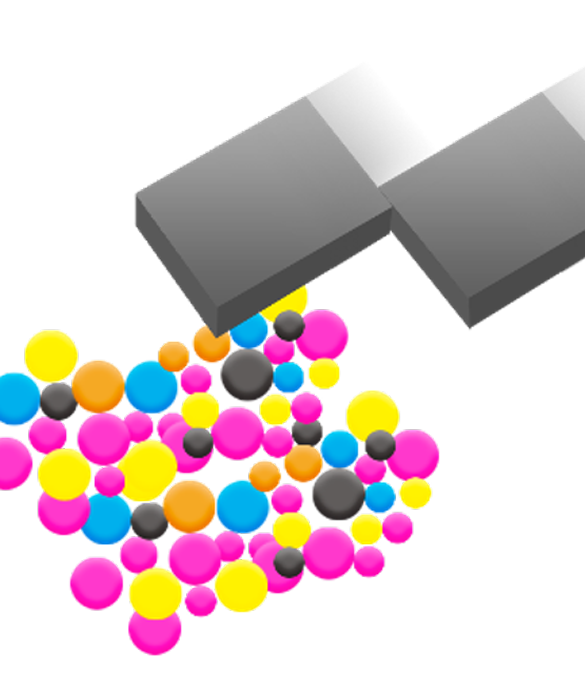

- Improved quality High precision print quality with newly developed Mimaki technology.With the introduction of a new ink drop technology which minimises individual head imperfections (in addition to VDP, MFD, MAPS and WFC), an enhanced ink circulation system and a minimum drop size of only 4 pico liters, superior image quality is achieved.

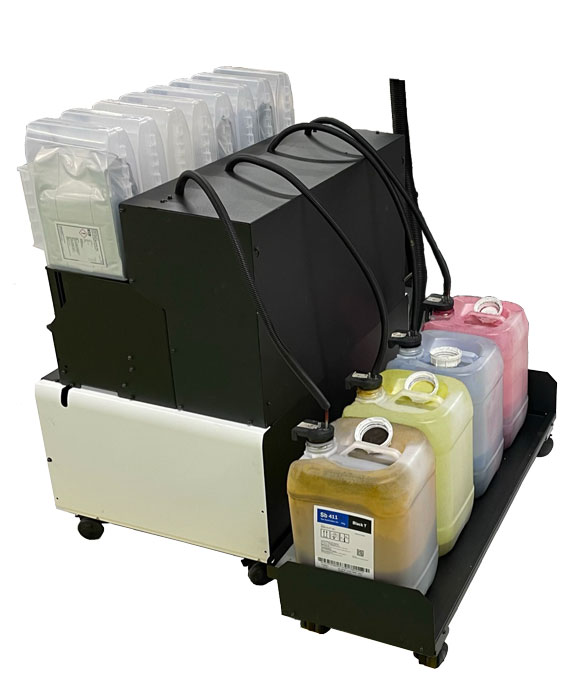

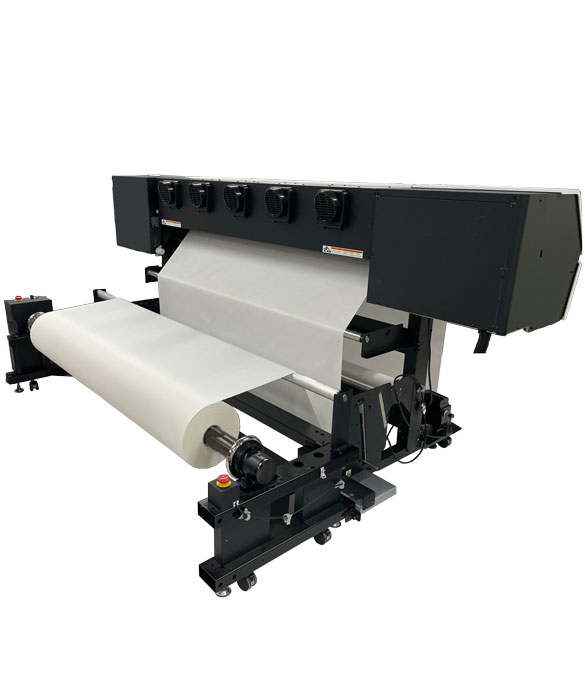

- Scalable productionWith the optional mini jumbo roll unit and the 10KG ink supply unit, you can scale up your production.With approximately 2,500 linear metres of transfer paper available, productivity can be maximised, while reducing running costs.
Designed to produce a wide range
of materials and applications
Dye sublimation inks
for vibrant colours and durability
The TS330-1600 comes with Mimaki’s high quality Sb411 dye sublimation ink which is known for its rub fastness, durability and colour intensity.
Available in a 4, 6 or even 7 colour configuration, supporting light colours and fluorescent colours contributes to the range of applications.
Sb411 comes in 2 litre ink packages or high capacity 10kg ink tanks.
For even more confidence
our inks are OEKO-TEX® certified
Mimaki inks Sb411 are OEKO-TEX® certified. ECO PASSPORT by OEKO-TEX® is a mechanism by which textile chemical suppliers demonstrate that their products are suitable to print skin-friendly clothing and other textiles for end users.
This certificate therefore constitutes an important decision-making element when purchasing inks for textile production.
TS330-1600
Core Technologies
This printer includes Mimaki Core Technologies that offer the best print quality, maximum productivity and reduced exposure to risks that can delay production. See below list of core technologies that are included in the TS330-1600.
For continued productivity
- Nozzle Check Unit (NCU), to detect missing nozzles
- Nozzle Recovery System (NRS), to replace missing nozzles
- Automatic Cleaning Function, to keep the print head clean
- Mimaki Circulation Technology (MCT), preventing ink sedimentation
- Uninterrupted Ink Supply System (UISS), for uninterrupted ink supply
For quality printing
- Mimaki Advanced Pass System (MAPS4), to reduce banding
- Waveform Control (WFC), for best possible image sharpness
- Variable Dots Technology (VDT), for smoother gradations
- Mimaki Fine Diffusion (MFD), for smoother colours
- Dot Adjustment System (DAS), for stable printing
| Model | TS330-1600 |
| Print head | 2 drop-on-demand piezoelectric head; stagger arrangement |
| Print resolution | Y: 300, 600dpi X: 600dpi, 900 dpi, 1200 |
| Drop size | Min: 4pl |
| Head height | Manual adjustment (3.0/3.5/4.0 mm from platen) |
| Compatible inks | Sb411: BMYK / 4C+F: BMYK FyFp* / 6C: BMYKLbLm / 6C+F: BMYKLbLm FyFp* / 7C: BMYKLkLbLm |
| Ink supply | 2000ml Ink bag Optional 10kg Tank (BMYK only) |
| Max printing width | 1,610mm |
| Max media width | 1,620mm |
| Media thickness | 1.0mm or less |
| Outside diameter | 250mm or less |
| Inner diameter | 2-inch / 3-inch |
| Roll weight | 45kg or less |
| Interface | USB2.0 / Ethernet 1000 BASE-T |
| Body weight | 241kg |
| Dimension (WxDxH) | 3,170mm / 1,215mm / 1,305mm |
| Power supply | 1 x Single phase (AC100~120/200~240V +/- 10%, 50/60Hz +/- 1Hz) |
| Power consumption | Max: 1.44kW or less |
| Safety Standards | IEC 62368-1 compliant ETLCB, CE (EMC Directive, Low Voltage Directive, Machinery Directive, RoHS Directive) REACH, VCCI Class A, FCC Class AEAC, KC, RCM, UKCA, EnergyStar |
Software RIP
The primary task of RIP (Raster Image Processor) software is to convert the different formats of the file to be printed into data that the printer “understands” as raster data.
TxLink 4 lite
SB411
Dye Sublimation ink
Mimaki ink developed for fast printing on transfer paper
Packaging
10KG ink tank (Bl M Y K only)
Colour
6 colours : Bl M Y K Lb Lm
7 colours : Bl M Y K Lb Lm Lk
Ink type
SB410
Fluorescent Pink & Yellow inks
Mimaki ink developed for fast printing on transfer paper
Packaging
10KG ink tank (Bl M Y K only)
Colour
6 colours + Fluorescent: Bl M Y K Lb Lm Fp Fy
Ink type
